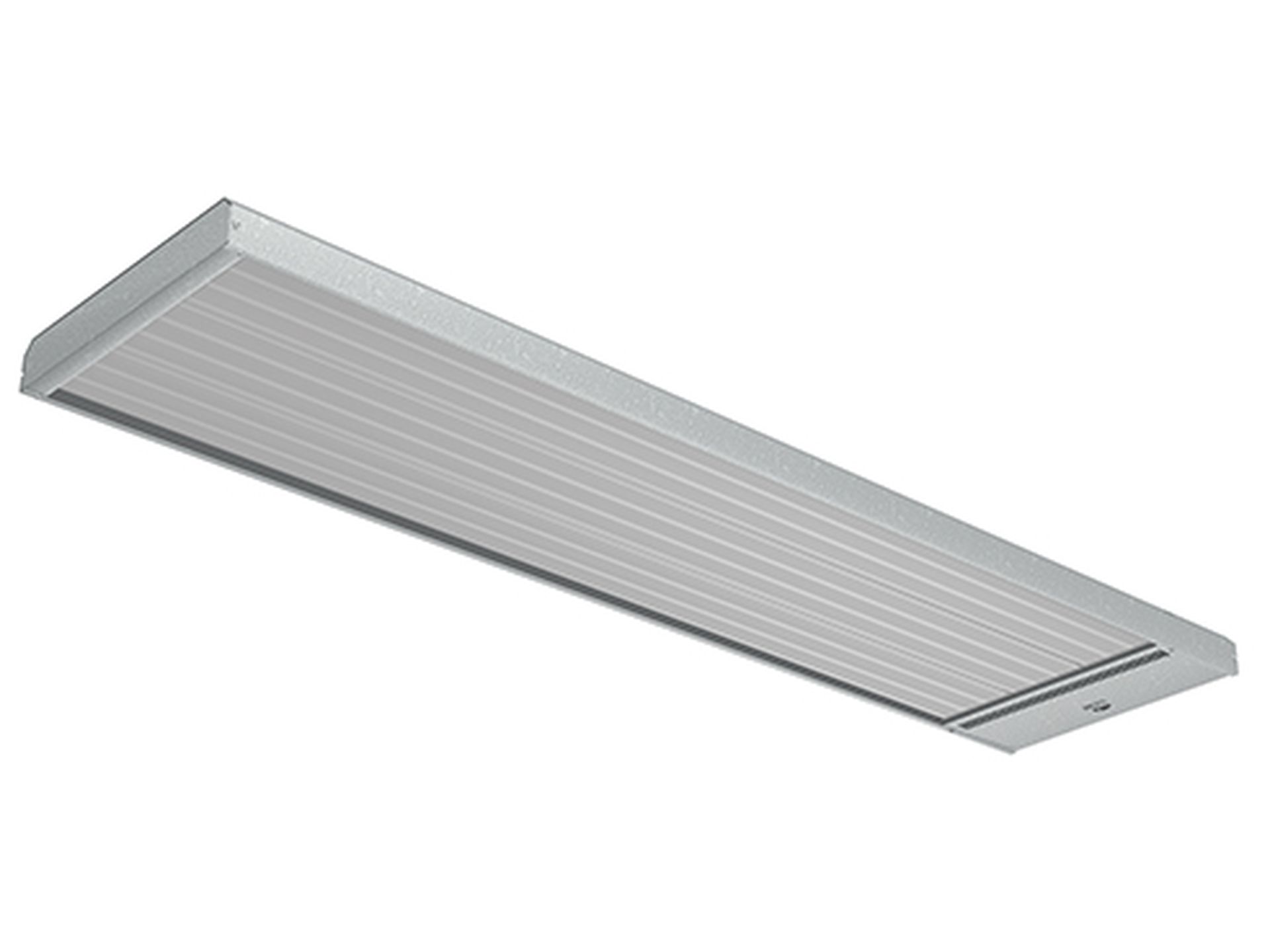

Elztrip EZ300 Industrial Infrared Heaters

    Powerful panel heater for industrial spaces

    • Powerful

    • High Ceilings

    • Cost-effective

    • Smart Control options

    • Recommended installation height 4-15 m

    Triple Panel

    Fitted with triple heat elements, the EZ300 delivers highly-efficient and effective heating in larger spaces such as warehouses and industrial units.


    Energy Saving

    Elztrip panels provide heating where it is needed, at floor level not in the ceiling. They also give you the possibility to heat only a limited area of a large open space.

    Integrated Elements

    The EZ300 has a simple design with integrated elements that improve the overall efficiency of the unit.


    Ceiling Mounting

    Elztrip EZ300 comes with standard fittings and is installed on ceilings - on armature rails, wire or suspended by means of rods or chains.

    Elztrip EZ300 is a panel heater intended for total and supplementary heating in industrial environments such as warehouses, workshops etc. EZ300 is fitted with triple heat elements.

    Elztrip is installed horizontally on ceilings, in armature rails, on cables, suspended, etc. Standard mountings for installation included. Elztrip is intended for permanent installation. The heaters are approved for serial connection.

    The unit* must be installed with thermostat TPT16(WF) or control system FC113 to comply with Commission Regulation (EU) 2024/1103 (Ecodesign). For improved efficiency accessories such as black bulb or distance control can be added. Please note that relaybox RB3 is required for 400V~ for control with TPT16(WF). Controls for installations not affected by the Ecodesign directive are available as well.

    * This product is an electric fixed local space heater and, in order to be compliant with the mandatory ecodesign requirements set out in Commission Regulation (EU) 2024/1103, needs to be complemented with a control providing at least the following control functions TW(f2/f4/f8): Electronic room temperature control plus week timer, open window detection, adaptive start control and control accuracy with CA < 2 Kelvin and CSD < 2 Kelvin.
