IR Industrial Infrared Heaters
Effective heat for premises with large volumes and high ceilings
Industrial Heater
Powerful
No Heat Losses at the Ceiling
Recommended installation height 4 - 20 m
Powerful
The IR has a robust industrial design that provides total or supplementary heating for premises with large volumes and high ceilings up to 20 meter.
Optimal Heat Distribution
The unit is fitted with reflectors made of shiny anodised aluminium that ensures optimal heat distribution.
Ceiling or Wall Mounting
The IR is installed on the ceiling or the wall. The supplied mounting bracket allows the heater to be angled in different positions.
Energy Saving
Infrared panel heaters provide heating where it is needed, at floor level not in the ceiling. They also give you the possibility to heat only a limited area of a large open space.

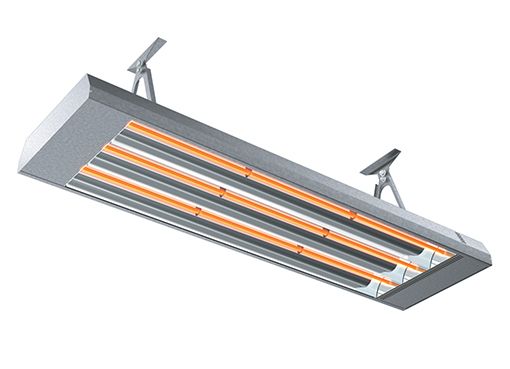

Infrared heater IR is a heavy duty panel heater suitable for total or supplementary heating of premises with large volume and high ceilings. It can also be used outdoors for example on sport arena stands or to keep loading bays dry and frostless.
Industrial infrared heater IR is installed horizontally with mounting brackets that can be installed directly against the ceiling or wall. The mounting allows the radiation angle to be adjusted 30° in each direction. The heaters can also be suspended from wire (minimum Ø 3 mm). Industrial infrared heater IR is intended for permanent installation. There are double connection plinths in the connection box that make it possible to further connect from one heater to another.
Protection grille is available as an accessory.
The unit* must be installed with TPT16(WF) or FC111/113 to comply with Commission Regulation (EU) 2024/1103 (Ecodesign). For improved efficiency accessories such as black bulb or distance control can be added. Please note that relaybox RB3 is required for 400V~ for control with TPT16(WF). Controls for installations not affected by the Ecodesign directive are available as well.
*This product is an electric visibly glowing radiant local space heater and, in order to be compliant with the mandatory ecodesign requirements set out in Commission Regulation (EU) 2024/1103, needs to be complemented with a control providing at least the following control functions TW(0/f2/0/0/0/0/0/f8).
